Shadow Assembly

Patent #: US20220120529A1

Shadow Assembly | Single Spring-Loaded Retention Pin Weapon Mount

The Shadow Assembly is a lightweight, mission-adaptable single or dual swing arm weapon mounting solution, engineered for rapid deployment across modern light tactical vehicle platforms.

Designed with mobility, modularity, and speed in mind.

  • 20 inches

    Total Length: Dual Arm full extension

  • 12.21 lbs

    Dual Arm + Cradle

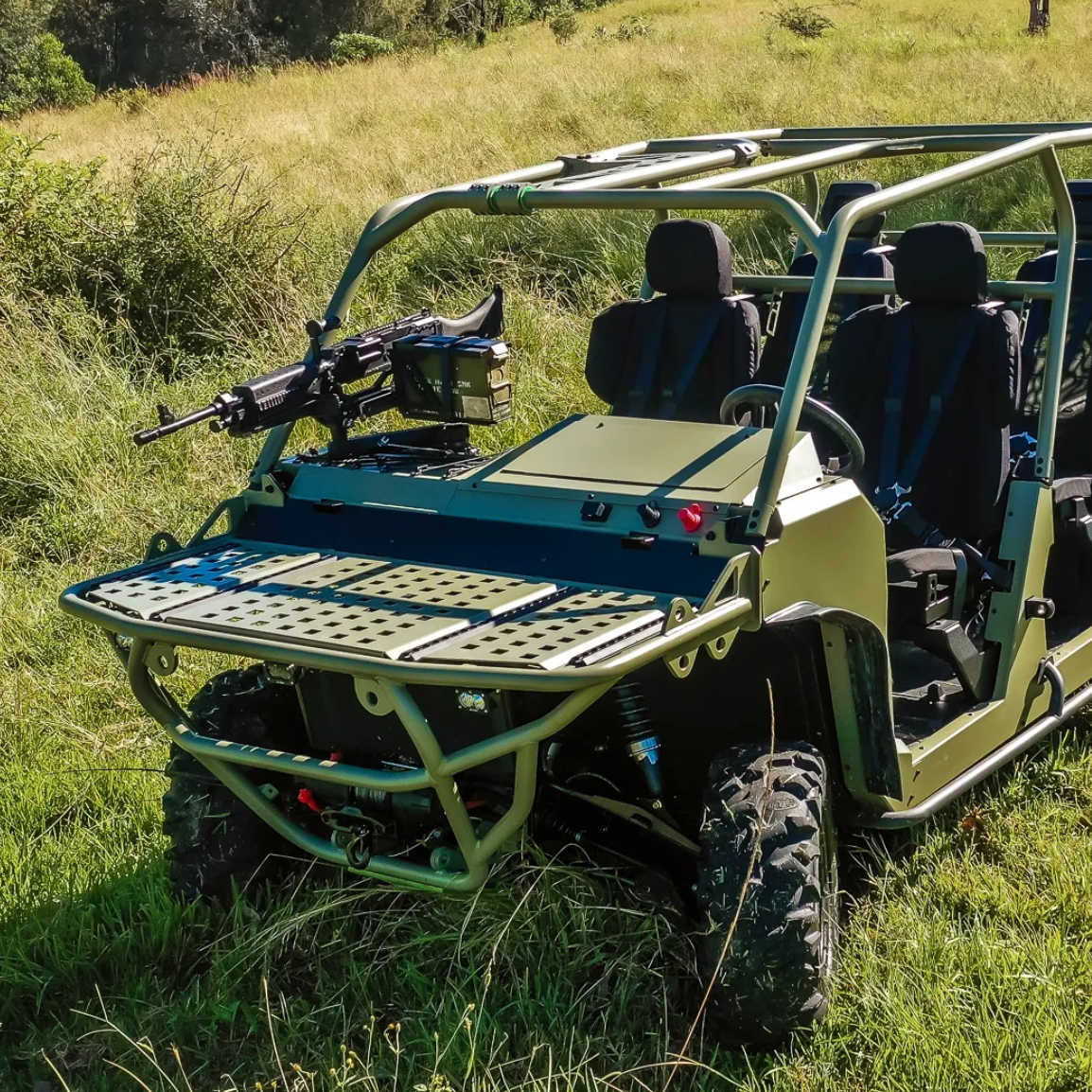

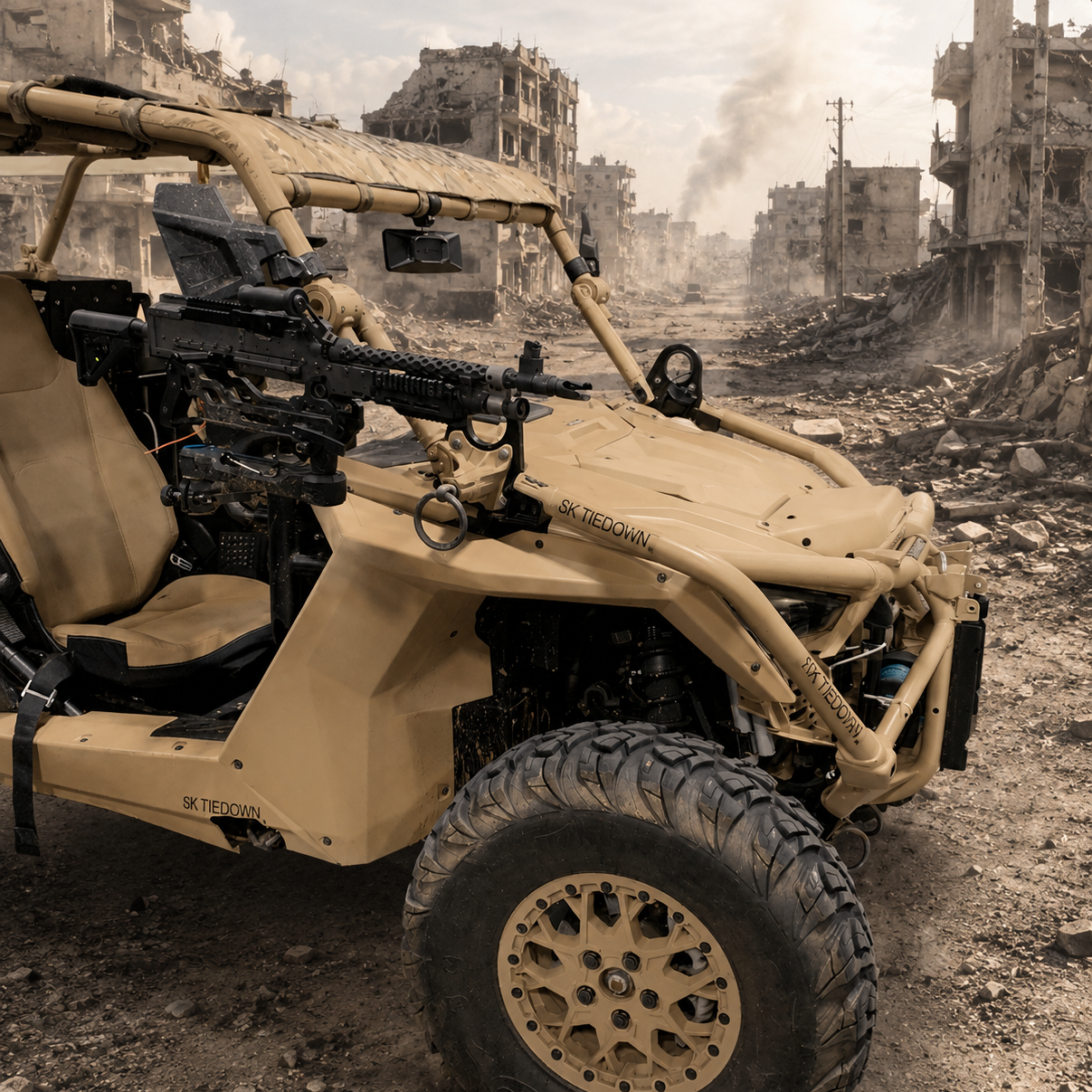

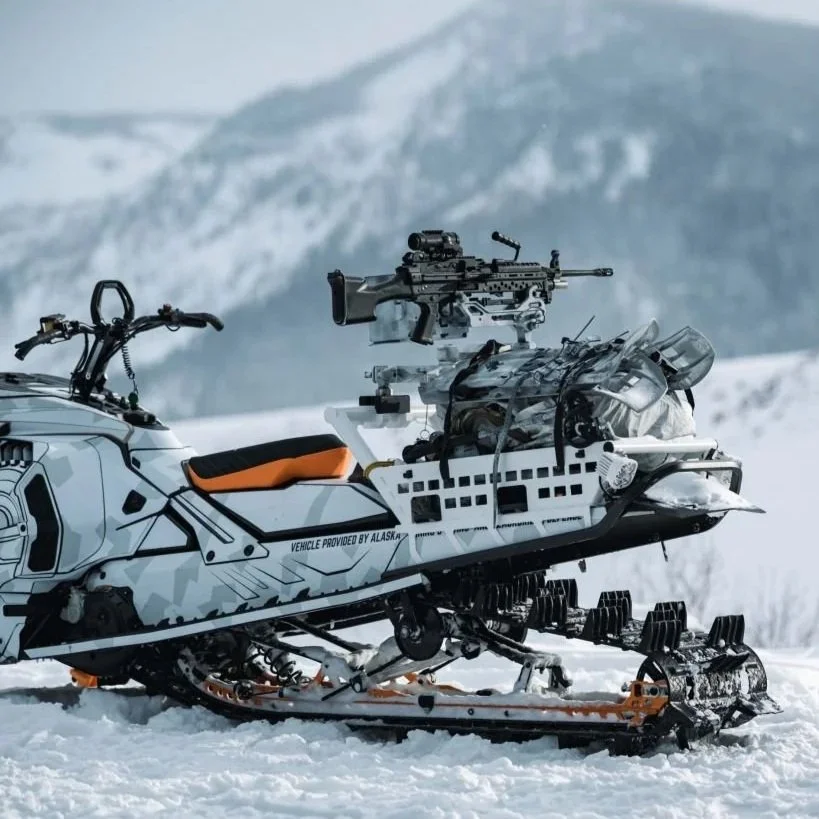

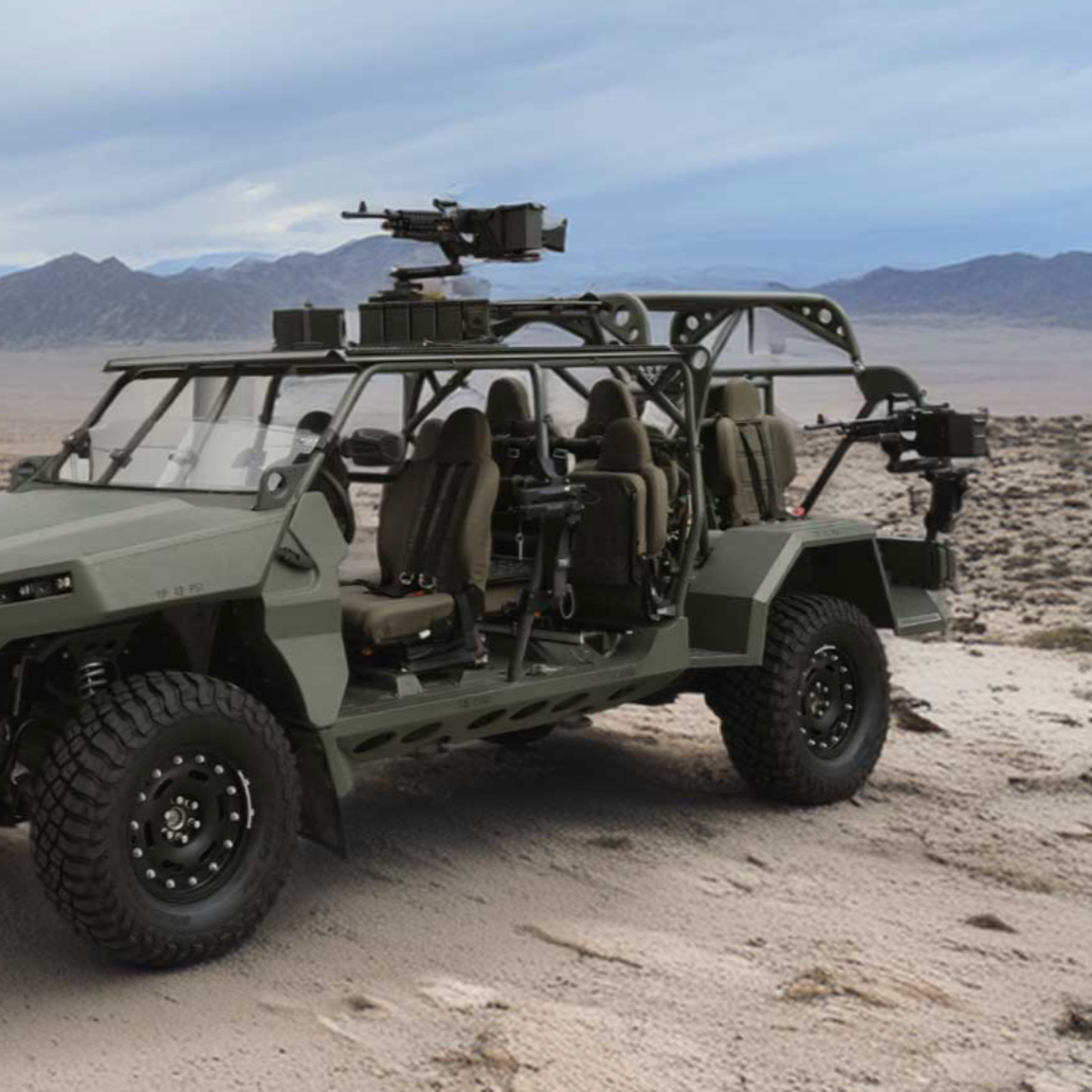

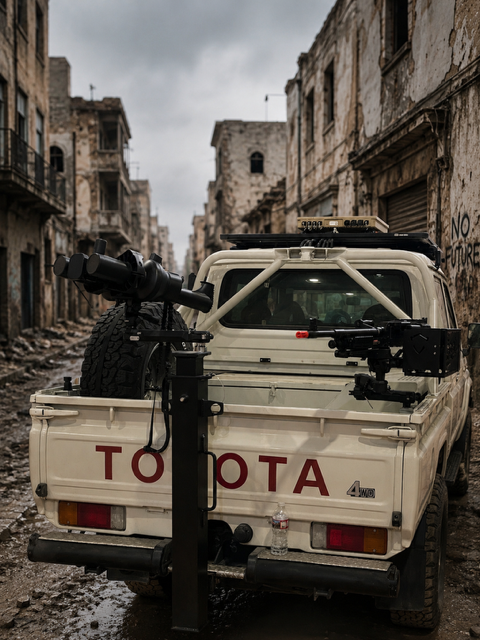

  • Vehicle Mounting

    Types: Turret, A-Pillar, B-Pillar, and Hitch

  • Type III

    Hard anodized coating

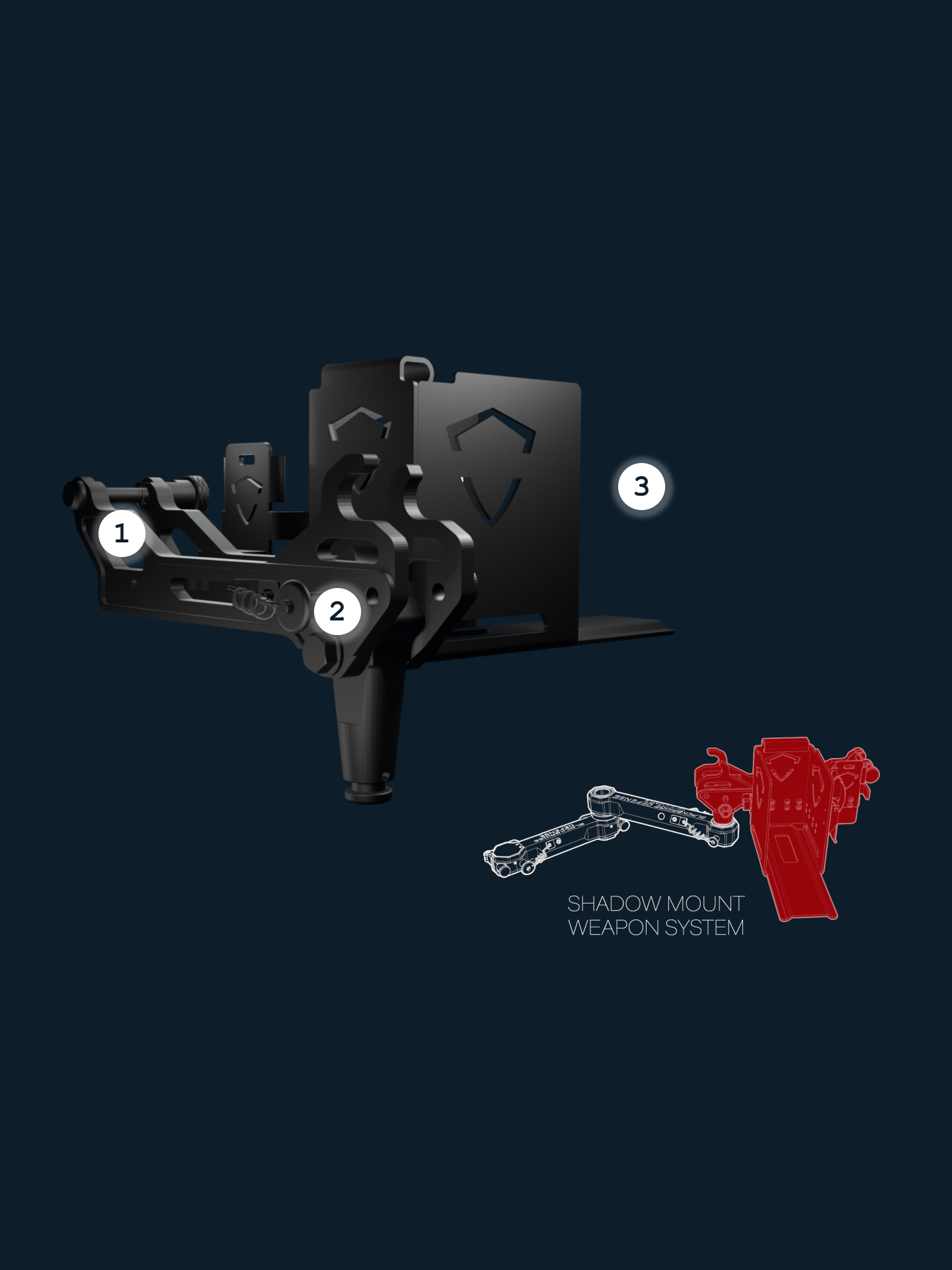

Illustration of a shadow mount weapon system with labeled parts. The diagram includes a simplified outline of the system with labels pointing to different sections.

Overview

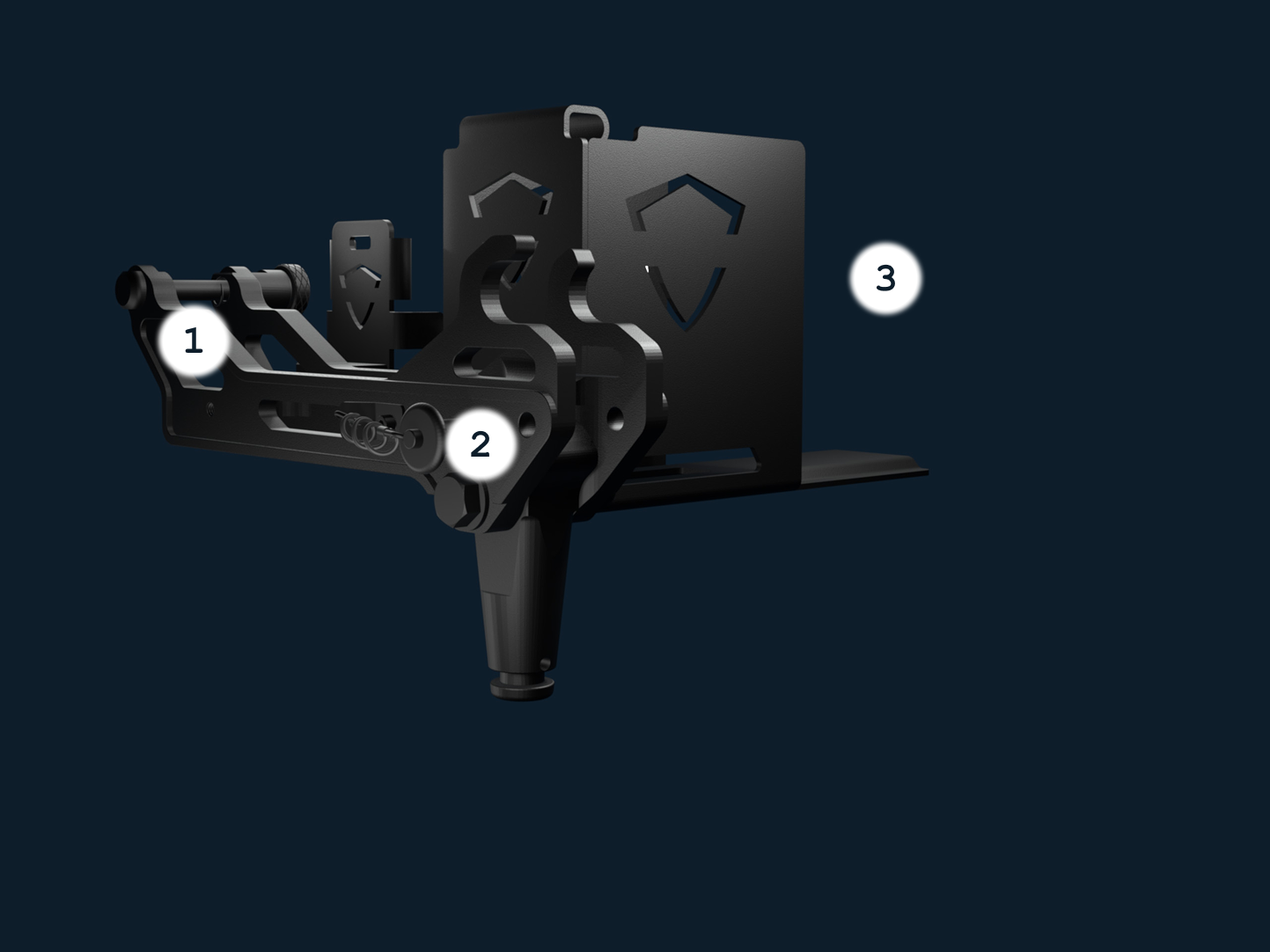

Shadow Cradle

The Shadow Cradle is a lightweight, mission-adaptable weapon interface designed for rapid weapon integration. Compatible with the FN MAG family of 7.62mm machine guns (M240, L7, C6, MAG 58) and FN Minimi family of 5.56mm machine guns (M249, C9, F89), the cradle utilizes a spring-loaded quick-release retention pin to provide secure weapon retention while enabling rapid mounting and dismounting in operational environments.

  1. Pintle Lock-Out & Elevation Control

    The integrated pintle lock-out system secures the weapon at three selectable elevation positions when static. A 22-degree elevation limit stop (optional) provides a positive mechanical hard stop, helping prevent accidental discharge into the vehicle structure or engine compartment when mounted from elevated vehicle positions.

  2. Mounting Interface

    Designed to work seamlessly with the Shadow and Delta Swing Arm family, the cradle incorporates a single-pin weapon attachment system for rapid changeovers between supported weapon platforms. An integrated Picatinny rail provides additional mounting capability for mission-specific accessories.

  3. Ammunition Management
    The Shadow Cradle supports multiple ammunition configurations, including 200 rounds of 7.62mm, 100 rounds of 5.56mm, or up to 600 rounds utilizing a three-bracket configuration. The rugged ammunition carrier system protects ammunition from debris and environmental hazards while maintaining rapid access during operation.

  4. Construction
    Manufactured from aerospace-grade aluminum, 304 stainless steel, and 17-4 stainless steel components, the Shadow Cradle is engineered to deliver exceptional durability, corrosion resistance, and long-term performance in demanding operational environments.

Download Spec Sheet

  • 14 inches

    Cradle only

  • 6.42 lbs

    Total Weight: 9.34 lbs with Single Arm or 12.21 lbs with Dual Arm

  • Picatinny Mounting Rail

    Ammo can brackets M240 and M249 feedtray

  • Type III

    Hard anodized coating

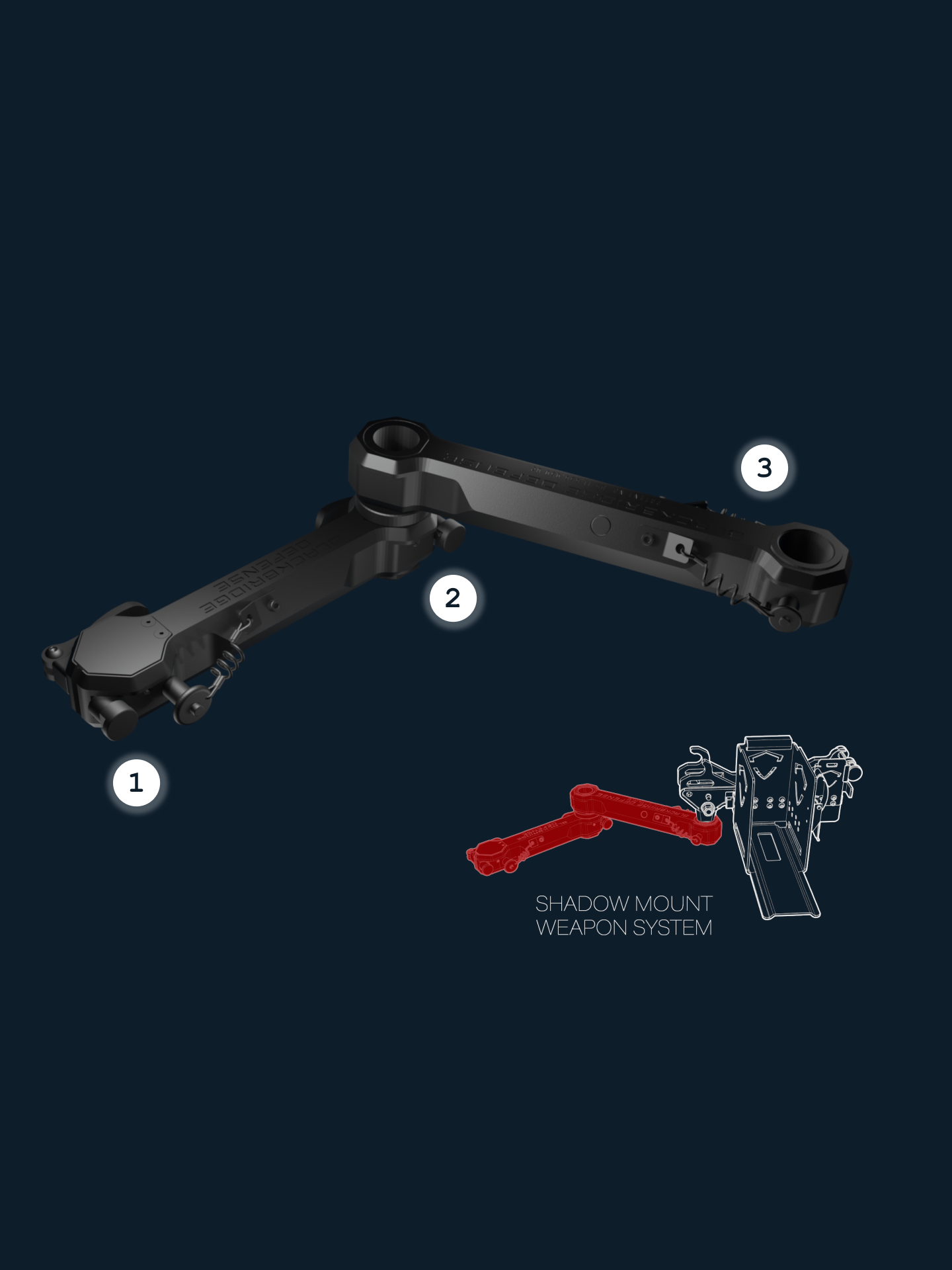

Illustration of a shadow mount weapon system, featuring components, with a diagram showing how the parts connect to a firearm.

Overview

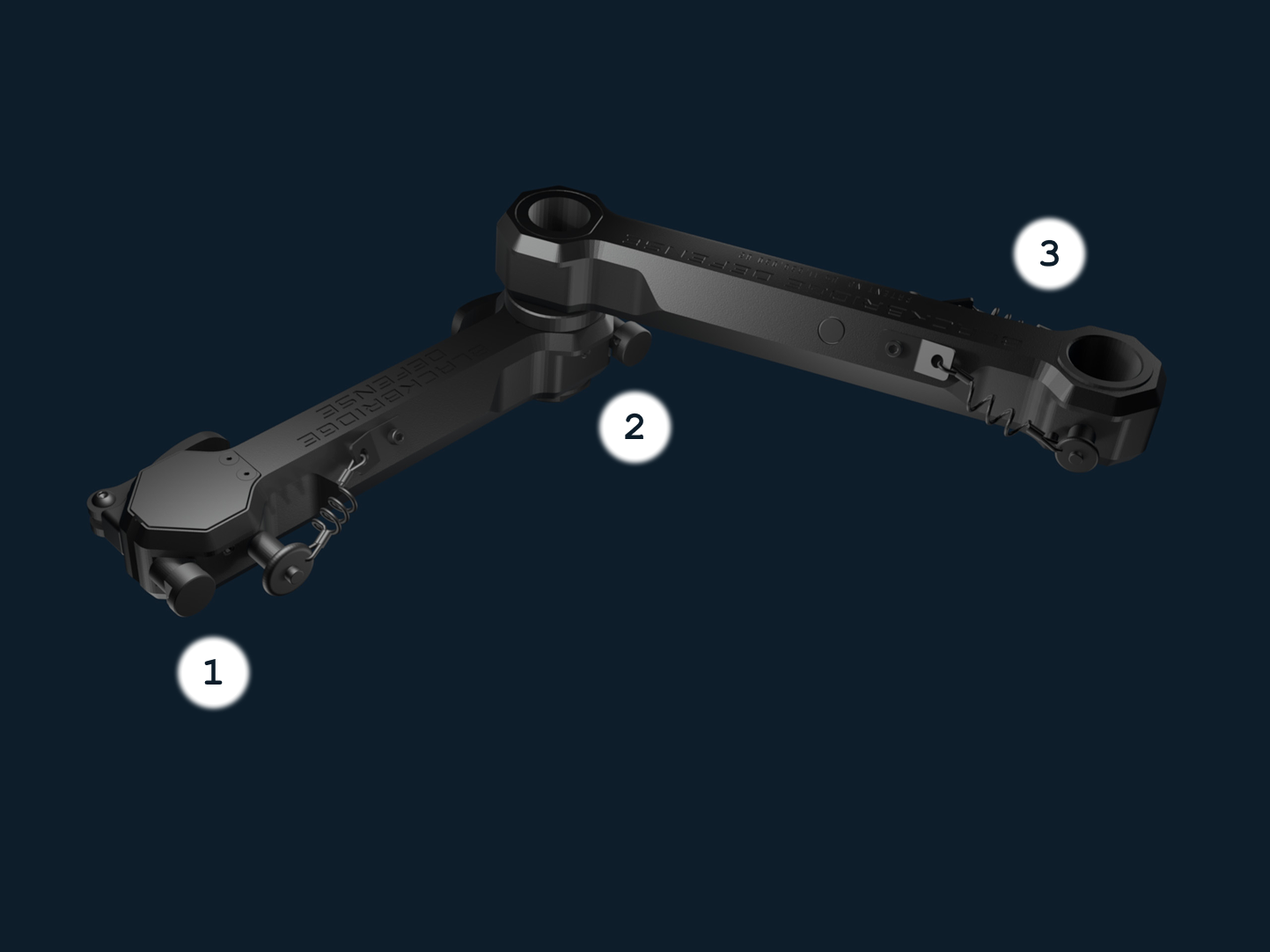

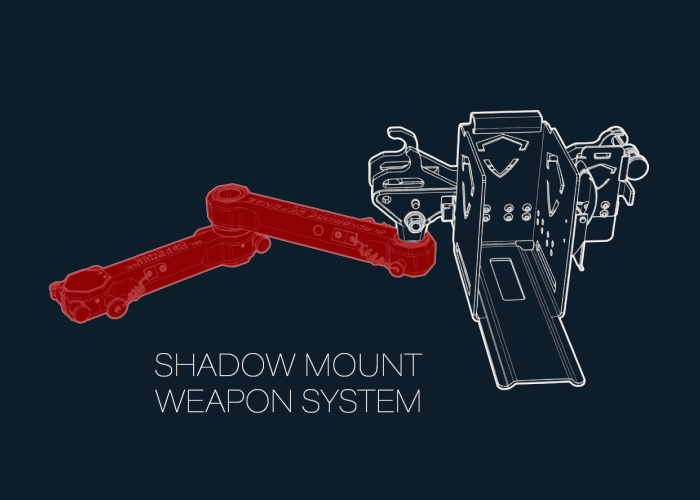

Shadow 02 Swing Arm

The Shadow 02 is a lightweight, mission-adaptable dual swing arm weapon mounting system engineered to provide a stable firing platform while maintaining rapid deployment, stowage, and weapon interchangeability. Designed to integrate seamlessly with the Shadow, Delta, and Reaper cradle families, the system utilizes precision-engineered ball-locking detent pins to support rapid configuration changes in dynamic operational environments.

  1. Rapid Deployment & Retention
    The Shadow 02 features precision-engineered ball-locking detent pins, enabling fast installation, removal, and repositioning across multiple vehicle platforms without the need for tools. The robust locking architecture provides positive engagement and repeatable performance in demanding operational conditions.

  2. Vehicle Integration
    Designed for maximum flexibility, the Shadow 02 supports multiple vehicle mounting configurations including turret, A-pillar, B-pillar, and receiver hitch applications. Its modular architecture allows operators to adapt a single weapon mount system across a wide range of tactical, commercial, and specialty vehicle platforms.

  3. Multi-Environment Performance
    Engineered for operation in austere environments, the Shadow 02 is designed to withstand extreme temperatures, mud, dust, moisture, vibration, and prolonged field use. The system maintains functionality and reliability in the demanding conditions encountered by military, law enforcement, and security forces worldwide.

  4. Construction & Finish
    Manufactured from aerospace-grade aluminum, 304 stainless steel, and 17-4 stainless steel components, the Shadow 02 balances lightweight construction with exceptional strength and durability. A Type III hard anodized matte black finish provides superior wear and corrosion resistance in demanding operational environments.

Download Spec Sheet

  • 20 inches

    Total Length: full extension

  • 5.79 lbs

    Total Weight: 12.21 lbs with Cradle

  • Precision engineered mounting

    Ball-Locking Detent Pins

  • Type III

    Hard anodized coating

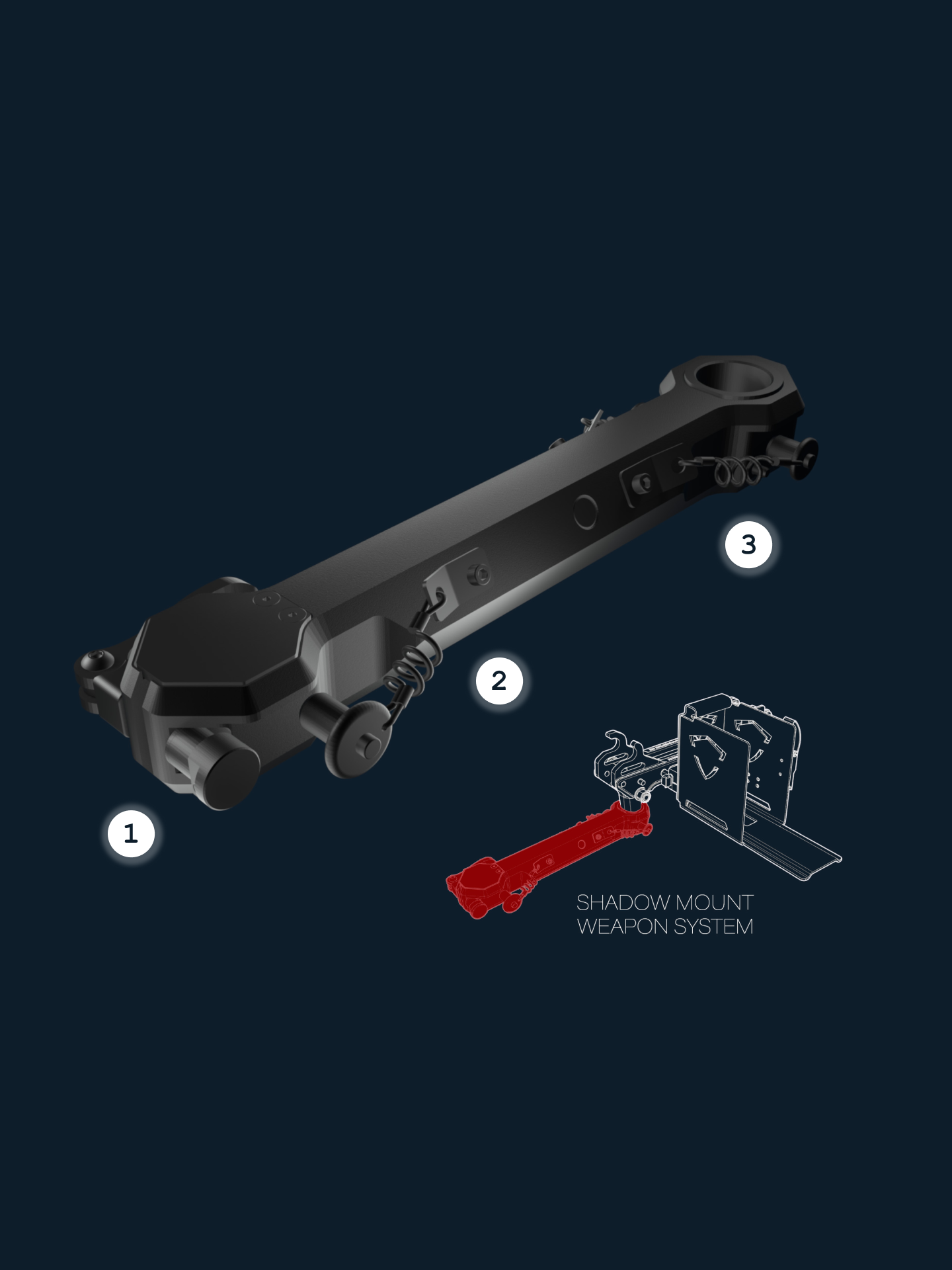

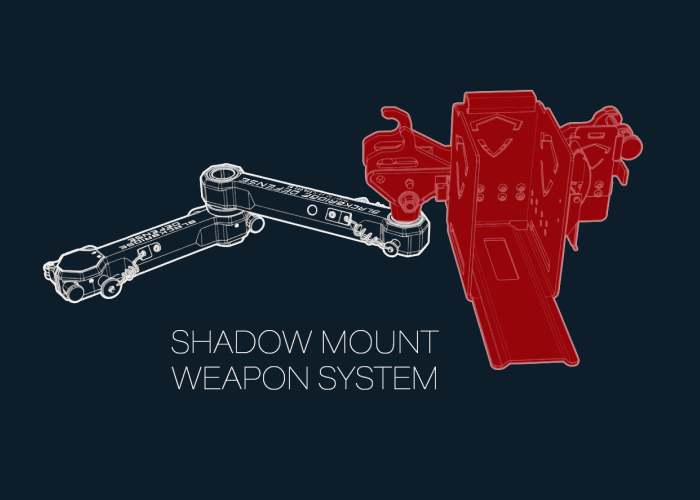

Diagram of a shadow mount weapon system with labeled components, including a main black component, connecting parts, and a red highlighted part labeled as shadow mount weapon system.

Overview

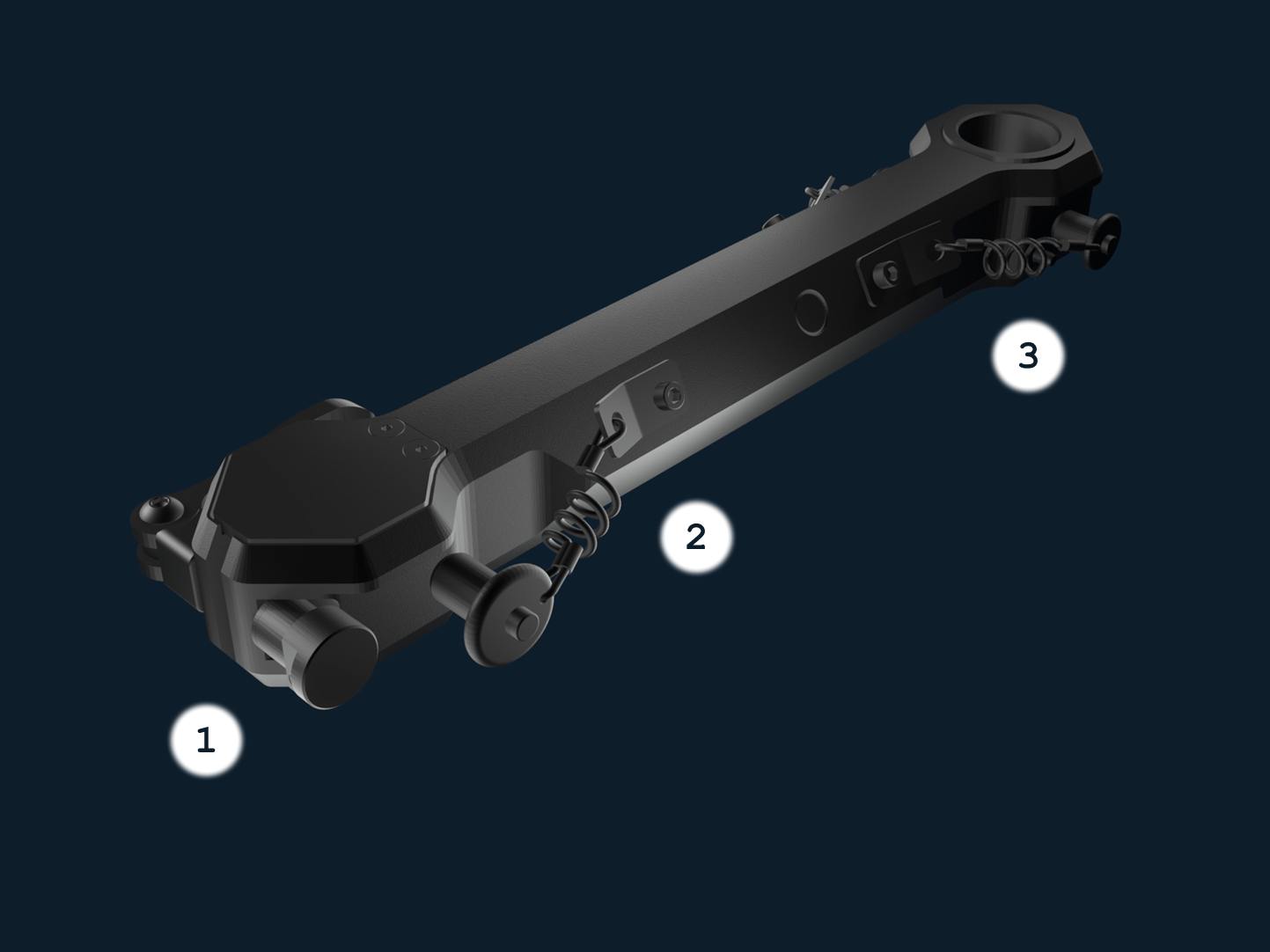

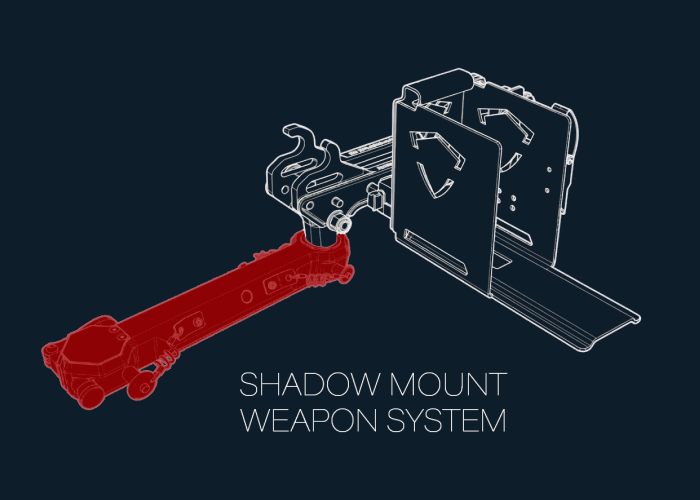

Shadow 01 Swing Arm

Shadow 01 Swing Arm

The Shadow 01 is a lightweight, mission-adaptable single swing arm weapon mounting system engineered to provide a stable firing platform while maintaining rapid deployment, stowage, and weapon interchangeability. Designed to integrate seamlessly with the Shadow, Delta, and Reaper cradle families, the system utilizes precision-engineered ball-locking detent pins to support rapid configuration changes in dynamic operational environments.

  1. Rapid Deployment & Retention
    The Shadow 01 features precision-engineered ball-locking detent pins, enabling fast installation, removal, and repositioning across multiple vehicle platforms without the need for tools. The robust locking architecture provides positive engagement and repeatable performance in demanding operational conditions.

  2. Vehicle Integration
    Designed for maximum flexibility, the Shadow 01 supports multiple vehicle mounting configurations including turret, A-pillar, B-pillar, and receiver hitch applications. Its modular architecture allows operators to adapt a single weapon mount system across a wide range of tactical, commercial, and specialty vehicle platforms.

  3. Multi-Environment Performance
    Engineered for operation in austere environments, the Shadow 01 is designed to withstand extreme temperatures, mud, dust, moisture, vibration, and prolonged field use. The system maintains functionality and reliability in the demanding conditions encountered by military, law enforcement, and security forces worldwide.

  4. Construction & Finish
    Manufactured from aerospace-grade aluminum, 304 stainless steel, and 17-4 stainless steel components, the Shadow 01 balances lightweight construction with exceptional strength and durability. A Type III hard anodized matte black finish provides superior wear and corrosion resistance in demanding operational environments.

The Shadow 01 offers the same proven mounting architecture as the Shadow 02 in a more compact, lightweight single-arm configuration, making it ideal for applications where space, weight, or vehicle integration requirements are critical.

Download Spec Sheet

  • 13 inches

    Total Length: full extension

  • 2.92 lbs

    Total Weight: 9.34 lbs with Cradle

  • Spring-Loaded Retention Pin

    Ball-Locking Detent Pins

  • Type III

    Hard anodized coating
